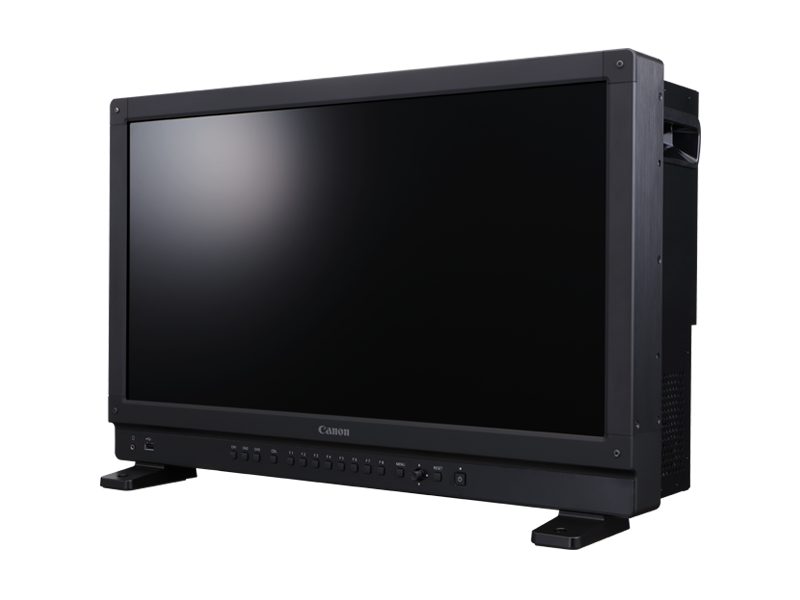

Canon DP-V2420
מפרטים

IPS LCD panel

24 inch（61.1cm）

17:9

4096 x 2160

Approximately 540.7 x 285.1mm

132μm / 193ppi

1024gradations 10-bit for each RGB color

Standard: 100cd/㎡

89° (contrast ratio 10 : 1 or higher)

Anti-glare Coating

RGB LED, Matrix Array

Rated Voltage: AC100～240V
Rated Frequency: 50/60Hz

At maximum load (including change in brightness through aging): Approx. 510 W
At factory shipment: Approx.180 W

Operating:
Temperature and humidity: 0 － 40 ℃ (32 － 104 °F) (20 – 85 % no condensation)
Recommended: 15 － 30 ℃ (59 － 86 °F)
Pressure: 700－1060 hPa

Storage/Transporting:
Temperature and humidity: -20 – 40 °C (-4 – 104 °F), （10 – 85 ％ RH no condensation）
41 – 60 ℃ (105 – 140 °F), (10 – 30 ％ RH no condensation）
Pressure: 700 – 1060 hPa

With stand: Approx. 593.6 x 398.6 x 235mm
Display unit only: Approx. 593.6 x 377.8 x 195mm

Approx.19kg

VESA standard200x100mm 6 points

3G/HD-SDI: BNC (75 Ω) receptacle connectors x 4 (1line)
3G-SDI: SMPTE 2048-2/274M/296/372/425-1/428-19/428-9 standards supported
HD-SDI: SMPTE 2048-2/274M/292-1/296/428-19/428-9 standards supported
HDMI: 1（1 system）Type A terminal
Copy protection: HDCP 2.2

3G/HD-SDI: Connectors x 4 (1 line for pass-through)
Audio: 1 stereo mini-jack

USB: 1 USB A receptacle terminal
Universal Serial Bus Specification Revision 2.0compliant LS (Low Speed)/FS (Full Speed)/HS (High Speed) mode compatible
Enhanced Host Controller Interface Specification for Universal Serial Bus Revision1.0 compliant
LAN: 1 RJ-45 terminal
IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant
